VPN SETUP FOR OpenWRT Chaos Calmer 15.05.1
We are going to setup OpenWRT Chaos Calmer 15.05.1 with OpenVPN in a simple LAN and WAN environment, where WAN is connected to the internet, and LAN will be the OpenVPN connection.
We are using our Netherlands VPN as an example.
Download Certificate and Keys
Download our zip file with configs and certificates: blackvpn_linux.zip (MD5) (SHA1)
The zip file contains various .conf files (which should NOT be used for OpenWRT) as well as a folder called “ssl”. Within that folder, there are two files we need:
ca.crt (Certification Authority certificate) and ta.key (Transport Layer Security key)
Install OpenVPN
Open your routers webinterface.
Go to System -> Software, and open the Configuration tab.
Now we need to add the luci distribution feeds for our version of OpenWRT.
“src/gz luci http://downloads.openwrt.org/chaos_calmer/15.05.1/%version%/generic/packages/luci”
Where %version% is replaced with the version of OpenWRT you are running.
In our example we are running the ar71xx version, so we add the following string into the Distribution feeds field:
src/gz luci http://downloads.openwrt.org/chaos_calmer/15.05.1/ar71xx/generic/packages/luci
For someone using the broadcom brcm47xx version, it would instead be:
src/gz luci http://downloads.openwrt.org/chaos_calmer/15.05.1/brcm47xx/generic/packages/luci
and click Submit.
Wait until the update is completed.
Type openvpn-openssl in the Download and install package field and click OK.
Wait until the package is installed.
Type luci-app-openvpn in the Download and install package field and click OK.
Wait until the package is installed.
Install the English localization package for the luci-app-openvpn.
Type luci-i18n-openvpn-en in the Download and install package field and click OK.
For other languages you can search for the localization, type luci-i18n-openvpn in the Filter field and press Find Package, to get a list of available localizations.
Now OpenVPN has been installed and will appear in the Services Menu.
Setup OpenVPN
Type blackVPN in the configuration name field and select “Simple client configuration for a routed point-to-point VPN” Click Add.
You will be forwarded to OpenVPN configuration page.
Click Switch to advanced configuration.
To add any missing OpenVPN parameters in the configuration screens, select the parameter in the dropdown menu at the bottom of the page, and then click Add.
Select Configuration category -> Service.
fast_io: check
Click Save
Select Configuration category -> Networking.
Select port in the dropdown menu and click Add.
port: 443
comp_lzo: adaptive
persist_tun: check
persist_key: check
Click Save
Select Configuration category -> VPN.
Click the checkbox for client, some more options will be revealed.
select proto in the dropdown menu and click Add.
select auth_user_pass in the dropdown menu and click Add.
Fill in details:
auth_user_pass: we need to create the file /etc/openvpn/userpass.txt
SSH or Telnet to your OpenWRT, as a privileged user, and enter the following:
cat <<EOF >/etc/openvpn/userpass.txt username password EOF
(where username and password are replaced with your blackVPN credentials)
pull: check
remote_random: check
proto: “udp” is recommended, “tcp” when having connection problems.”
remote: Choose your server from the list below. (vpn.blackvpn.nl, for example)
Click Save
Select Configuration category -> Cryptography.
Select auth in the dropdown menu, and click Add.
Select cipher in the dropdown menu, and click Add.
Select ca in the dropdown menu, and click Add.
Select key_method in the dropdown menu, and click Add.
Select tls_auth in the dropdown menu, and click Add.
Select ns_cert_type in the dropdown menu, and click Add.
Fill in:
secret: blank
auth: SHA512
cipher: AES-256-CBC
tls_client: checked
ca: click Choose File and choose the previously downloaded ssl/ca.crt file.
key_method: 2
ns_cert_type: server
tls_auth: We need to copy the downloaded file ssl/ta.key to /etc/openvpn/tlsauth.key
If we have SSH, we can copy the file to the router (where x.x.x.x is the IP of your OpenWRT) with :
scp ssl/ta.key root@x.x.x.x:/etc/openvpn/tlsauth.key
On Windows you can use pscp command to copy files from Windows to OpenWRT.
pscp is included with putty, but if you dont have it, you can download it from putty.org
Open cmd in the directory with pscp.exe file
Type command pscp source_file user@host:destination_file
For example:
pscp blackvpn_linux/ssl/ta.key root@192.168.1.1:/etc/openvpn/tlsauth.key
cat <<EOF >/etc/openvpn/tlsauth.key KEY EOF
Open the downloaded ssl/ta.key in a text editor, and copy its contents to your clipboard, then paste it in the script replacing KEY so it looks something like:
cat <<EOF >/etc/openvpn/tlsauth.key -----BEGIN OpenVPN Static key V1----- b790ea189139a6482df3c54dc1996921 ..... -----END OpenVPN Static key V1----- EOF
Click Save & Apply.
Add Interface
Go to Network -> Interfaces, and click Add new interface…
Enter the following data:
Name of the new interface: BLACK
Protocol of the new interface: Unmanaged
Cover the following interface: Custom Interface: tun0
Click Submit.

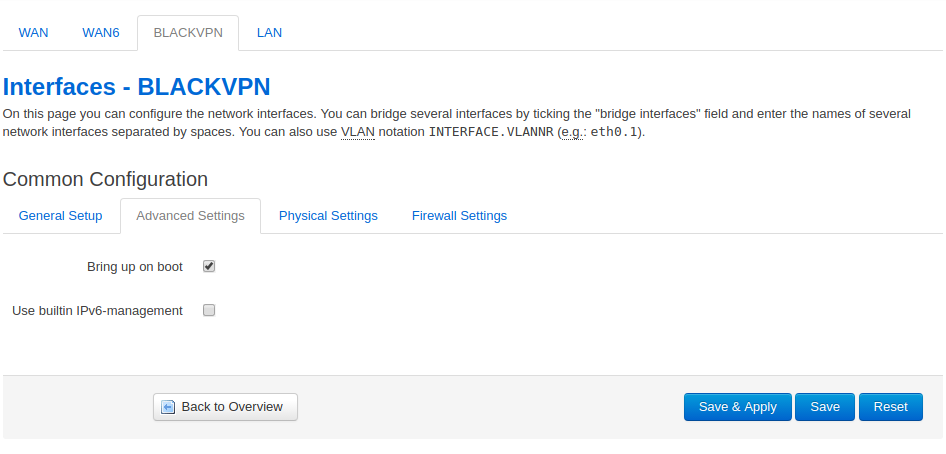

Go to the Advanced Settings tab.
Bring up on boot: checked
Use built-in IPv6-management: unchecked
Click Save.
Go to the Firewall Settings tab.
In the Create / Assign firewall-zone - unspecified -or- create: field, type the zone name : BLACK_FW
Click Save & Apply.
Setup Firewall
Go to Network -> Firewall
click Edit to the right of BLACK_FW
In the General Settings tab, select the following settings:
Input: reject
Output: accept
Forward: reject
Masquerading: checked
MSS clamping: checked
Covered networks: checked BLACK
In the Inter-Zone Forwarding: Check Allow forward from source zones: lan.
Click Save & Apply
Protect against DNS Leaks.
We need to update the LAN DHCP server to supply the blackVPN DNS server, 172.31.0.1, to prevent it from leaking the router DNS.
Go to Network -> Interfaces -> LAN DHCP Server -> Advanced Settings.
In the “DHCP-Options” (below the “Common Configuration” section) field enter the value: “6,172.31.0.1”.
Click Save & Apply
Start OpenVPN
Go to Services -> OpenVPN.
Set the checkbox Enabled for blackVPN and click Save & Apply.
Click start to the right of blackVPN.
It should take about 30 seconds to setup a connection with the VPN server.
You should now see that it says started yes
To confirm that the connection is happening in OpenWRT, go to Status > System Log
The word you’re looking for are “Initialization Sequence Completed”, and the full log should look something like this:
Troubleshooting
If no site loads, open a terminal and ping a reliable site like 8.8.8.8. If you get no response.
If Services -> OpenVPN shows that the blackVPN link is up, and you can ping Internet sites, it’s probably DNS resolution that is the problem.
Reset router
If you need to do a factory reset, SSH or Telnet to your OpenWRT, and as a privileged user type the following:
mount_root mtd -r erase rootfs_data reboot -f
